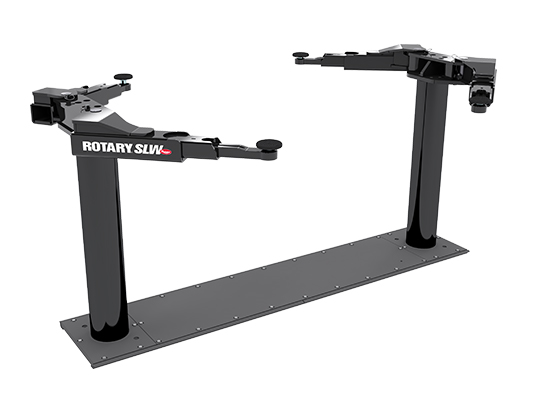

Two-post symmetric lift, 10,000 lbs., surface mounted, 3-stage arms with frame-contact adapters, frame contact, overhead equalization system, electric/hydraulic operation, arm restraints on all four arms.



Features

• 10,000 lbs. capacity.
• Symmetric lift, maximizes door-opening clearance.
• 3-stage arms with frame-contact adapters.
• Includes (4) 3-1/2" and (4) 5" aluminum extensions for additional clearance.
• Column design maximizes durability and provides a channel for bearings to travel.
• Maitenance-free slider bearings.
• High-pressure cylinders in both columns.
• User-friendly arm restraints automatically engage when lift is raised.
• Overhead switch stops rise when contacted, preventing vehicle damage.
• ALI certified



Technical

Dimensions (L x W x H)	108 x 137-1/2 x 140-1/2	inch
Power supply	208-230 / 60 / 20	V/Hz/A
Color	Black
Weight approx.	1,500	lbs
Lifting/lowering time approx.	45	s
Lifting height	80-1/4	inch
Oil fill capacity	3	gallons
Load carrying capacity	10,000	lbs
Drive-over height	4-3/4	inch
